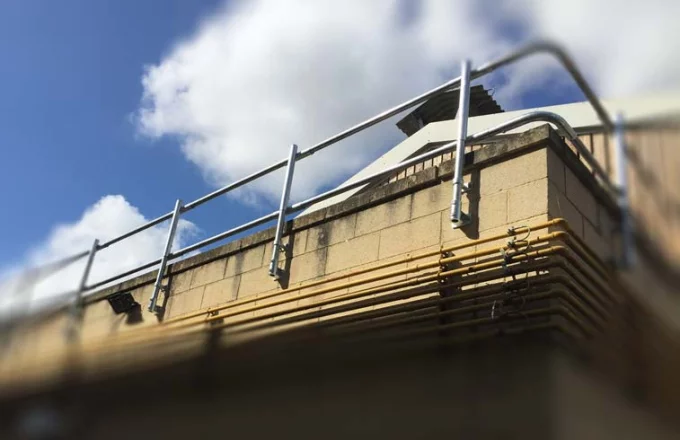

On construction sites, there will be many dangerous areas that need to be fenced to prevent accidents from entering by non-professionals. We needed a safety railing system that was easy to install and remove to do the job. When there is a dangerous area, we can quickly assemble and complete the shielding. When the danger is removed, it can be disassembled quickly and used repeatedly. The cost of this security railing system cannot be too high. Well, you can use Structural pipe fittings to do the job. Below we will introduce how to use Structural pipe fittings to complete the installation of safety railings on construction sites within five steps.
90 Degree Elbow：
Tubes of the same size and length：
Safety barriers used on construction sites need to have sufficient support capacity while serving as a warning. Therefore, its height generally exceeds half of the average height, which is 1.1 meters. The density and force capacity of the railings need to be determined according to the requirements of the country. So we need to determine what the standard requirements are before making a safety fence on a construction site.

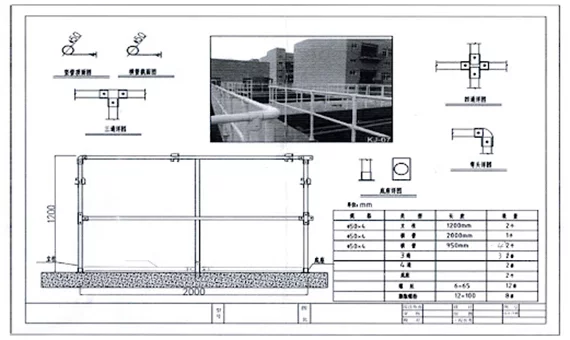

We can complete the design of safety railings through a professional design team. And we only need to complete the installation according to the design drawing. We can also complete the assembly directly if needed, because the structure of Structural pipe fittings is very simple. We only need to have an idea to complete the installation quickly.

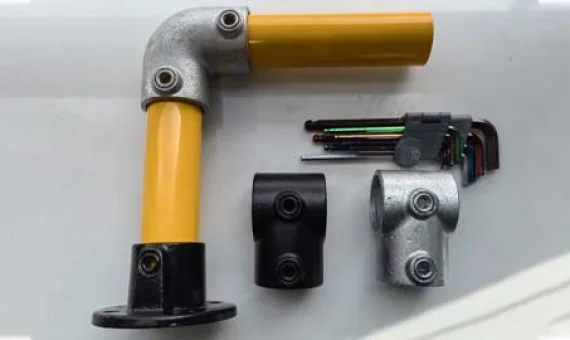

According to the design drawing, we can quickly calculate the length, size and quantity of the pipe, as well as the type and quantity of Structural pipe fittings. Among them, the function of Elbow is to provide a 90° angle for the structure; Tee can increase the density of structural uprights, Cross can increase the density of horizontal pipes, and the Joint can increase the length of pipes. When purchasing, we need to choose tubes with obvious warning colors, such as yellow.

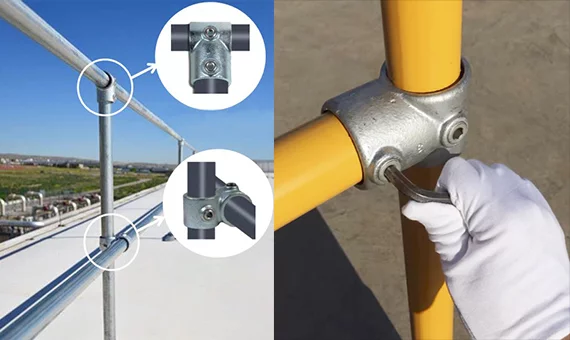

When sufficient quantity of Structural pipe fittings and pipes have been procured, we can start the safety railing assembly. According to the design drawing, we can complete the assembly faster. During the process, we only need to tighten the screws on the Structural pipe fittings with the Allen Key, and there is no need to use a lot of force to avoid damage.

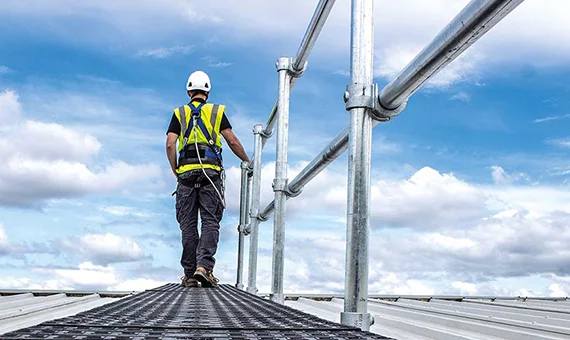

We need to conduct various safety inspections on the installed safety fence to ensure that it can provide sufficient safety protection. In addition, we also need regular maintenance of safety fences, especially those used on construction sites.
The Products and Tools You Will Use
In order to allow you to complete a safer Building Safety Railings faster, here we list some Structural Pipe Fittings that you may use. You can click to learn about their materials, parameters and surface treatments. You can also contact our engineers directly.
