Material Quality of Structural Pipe Fittings: Malleable Iron and Cast Iron

Material Quality of Structural Pipe Fittings: Malleable Iron and Cast Iron

October 12, 2023

Article Guidance:

Malleable Iron

Cast Iron

Material Quality Comparison

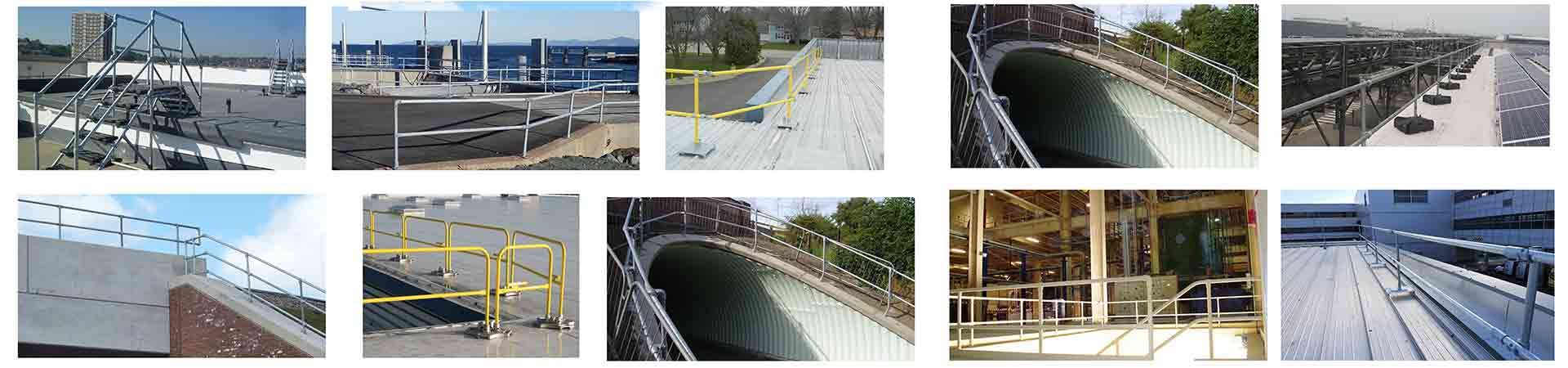

The construction and infrastructure industries have witnessed significant advancements in recent years, driven by the ever-evolving demand for durable and versatile building materials. Within this landscape, structural pipe fittings play a pivotal role in connecting, supporting, and anchoring components of various structures, from handrails and guardrails to scaffolding, handrails, and more. The material quality of these fittings is of utmost importance, as it directly affects the safety, stability, and longevity of the structures they support. In this comprehensive discussion, we will delve into two key materials for structural pipe fittings: malleable iron and cast iron. These materials have been foundational in the construction industry for centuries, offering unique properties that make them indispensable in a wide range of applications.


Malleable Iron


Malleable iron is a vital material in the construction industry, known for its exceptional mechanical properties and versatility in various structural pipe fitting applications. It is a type of cast iron, which means that it is created by melting iron and pouring it into molds, but what sets malleable iron apart is the post-casting treatment it undergoes.


1. Casting Process:

   Malleable iron fittings start as castings. Molten iron is poured into molds, creating a rough shape that corresponds to the desired fitting. The material choice in the casting process is critical, as it should have the appropriate composition and properties to facilitate the subsequent transformation into malleable iron.


2. Heat Treatment:

   The defining characteristic of malleable iron is the heat treatment it receives after casting. This heat treatment, called annealing, involves heating the castings to a specific temperature and then slowly cooling them. Annealing enhances the material's malleability, making it less brittle and more ductile. The crystalline structure of the iron is changed during this process, converting it into a more adaptable form.


3. Mechanical Properties:

   Malleable iron boasts remarkable mechanical properties, including high tensile strength, good ductility, and excellent impact resistance. These properties make it ideal for applications where structural pipe fittings must endure substantial loads, shocks, or vibrations.


4. Corrosion Resistance:

   To enhance its corrosion resistance, malleable iron fittings are often galvanized. Galvanization involves applying a layer of zinc to the surface of the fittings, forming a protective barrier against corrosion. This is particularly important in applications where the fittings are exposed to harsh environmental conditions, such as outdoor railing systems.


5. Versatility:

   The versatility of malleable iron is one of its key attributes. It can be easily threaded and connected, making it suitable for a wide range of applications in the construction industry. Its ductility allows for intricate shapes and designs, ensuring a snug fit with other components.


6. Standards and Regulations:

   When using malleable iron fittings in construction projects, it is essential to adhere to industry standards and regulations, such as those established by organizations like ASTM (American Society for Testing and Materials) and ASME (American Society of Mechanical Engineers). Compliance with these standards ensures that the fittings meet rigorous quality and safety requirements.


Cast Iron


While malleable iron is a subtype of cast iron, it is important to distinguish it from other types of cast iron that are less suitable for structural pipe fittings.


1. Gray Cast Iron:

   Gray cast iron is the most common type of cast iron. It is relatively brittle and lacks the malleability and ductility required for many structural applications. While gray cast iron is widely used in applications such as pipes, manhole covers, and engine blocks, it is not ideal for structural pipe fittings due to its brittleness and low tensile strength.


2. Ductile Iron:

   Ductile iron is another type of cast iron that is distinct from malleable iron. It offers greater strength and ductility compared to gray cast iron, making it suitable for some structural applications. However, it is important to note that malleable iron still surpasses ductile iron in terms of malleability and ductility, making it the preferred choice for certain types of fittings.


3. Cast Iron Structural Pipe Fittings:

   In contrast to malleable iron, cast iron fittings are generally not subjected to the same heat treatment processes. Cast iron fittings are typically designed for specific applications, such as drainage systems, and are not as versatile as malleable iron fittings. They are cast to shape and then machined to meet specific requirements.


Material Quality Comparison


To make an informed choice between malleable iron and cast iron for structural pipe fittings, it is essential to consider the specific requirements of the intended application and the properties of each material.


1. Strength and Ductility:

   Malleable iron excels in both strength and ductility, making it an ideal choice for applications that require fittings to withstand heavy loads and offer some degree of flexibility. Cast iron, while strong, is generally more brittle than malleable iron and may not provide the necessary ductility for certain applications.


2. Corrosion Resistance:

   Both malleable iron and cast iron can be galvanized to enhance their corrosion resistance. However, malleable iron typically outperforms cast iron in this regard due to its superior ductility, which allows for a more uniform galvanized coating.


3. Versatility:

   Malleable iron offers greater versatility in terms of design and adaptability. Its ductility allows for intricate and customized shapes, which is beneficial when fitting pipes in various configurations. Cast iron fittings are often more standardized and less adaptable.


4. Compliance with Standards:

   Malleable iron fittings, when used in structural applications, are more likely to meet industry standards and regulations due to their higher malleability, ensuring that they are well-suited for the intended purpose. Cast iron fittings may require additional testing and modifications to meet these standards.



In the world of structural pipe fittings, the choice between malleable iron and cast iron is crucial, as it directly impacts the safety, durability, and functionality of the structures they support. Malleable iron, known for its remarkable mechanical properties, ductility, and corrosion resistance, stands out as the preferred choice for many applications, particularly those involving heavy loads and complex designs. In contrast, cast iron fittings, while useful in specific contexts, are generally less malleable and adaptable.


Ultimately, the selection of material should align with the specific requirements of the project, adhering to industry standards and regulations to ensure the highest quality and safety. By understanding the distinctions between malleable iron and cast iron and evaluating their suitability for various applications, construction professionals can make informed decisions that lead to structurally sound and durable installations. In the ever-evolving landscape of construction, the material quality of structural pipe fittings remains a cornerstone of excellence and reliability.
