In buildings, industrial facilities, commercial places and even residential projects, the guardrail system is not only related to the beauty of the space, but also to the safety of personnel. Among the many guardrail solutions, tubular handrail systems are gradually becoming the mainstream of the market due to their modular design, durability and easy installation. Pipe railing fittings are the core components for the stable operation of this system.
This article will start from the perspective of what customers care about most, and comprehensively introduce the structure, advantages, accessory types and selection recommendations of tubular handrail systems to help you make wise decisions during procurement and use.
Tubular handrail system is a modular guardrail system made of steel or aluminum tubes. It is mainly assembled by standardized pipe railing fittings. It is widely used for personnel protection and space division in platforms, walkways, stairs, industrial plants, ports, warehouses and other areas.
Compared with traditional welded guardrail systems, tubular handrail system does not require on-site welding. It is all spliced and formed by standardized pipe railing fittings/structural tube fittings, which greatly reduces construction time and labor costs, and is convenient for later disassembly, adjustment or maintenance.

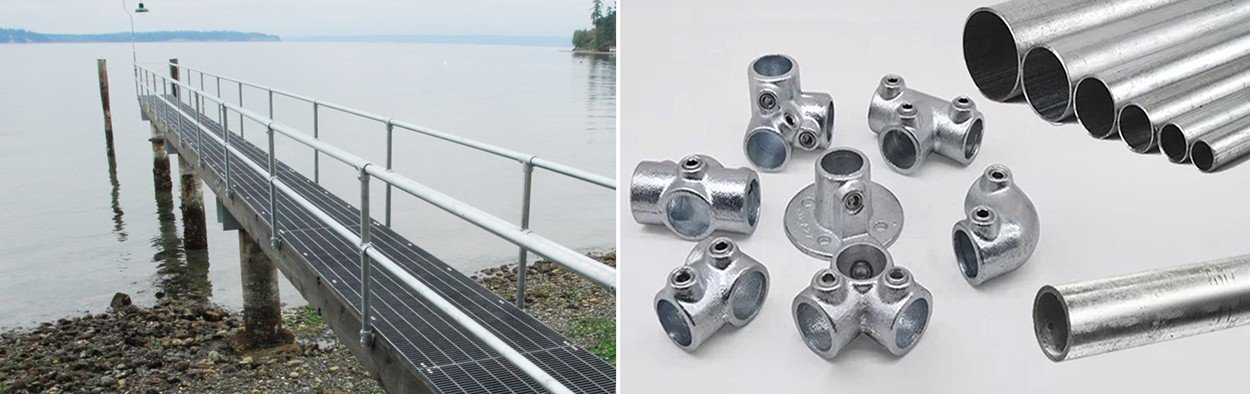

Pipe railing fittings, also known as structural pipe fittings or pipe guardrail fittings, are key components that connect handrail pipes, column pipes, crossbars, etc. into a whole. They are usually made of malleable iron or ductile iron, and have the characteristics of high strength, corrosion resistance, and strong reusability.
Common types of fittings include:
Elbow: used to change the direction of the pipe, such as 2 Way Elbow 125, Variable Elbow 40~70 Degree 123, side outlet elbow 128, etc.
Tee: used for three-way intersection connection, such as Single Socket Tee 101, Three Socket Tee 104, Adjustable Short Tee 129, 90° Side Outlet Tee 116, etc.
Cross: used for structural support of four-way connection, such as Two Socket Cross 119, Three Socket Cross 176, Four Socket Cross 158, etc.
Swivel: allows angle adjustment, used for complex terrain or inclined connection, such as Singe Swivel Combination 173, Corner Swivel Combination 168, Double Swivel Combination 167, etc.
Base Flange: fixes the column to the ground or wall, such as Railing Base Flange 132, Base Flange 131, Swivel Base Flange 169, Slop Base Flange 152, etc.
End Cap: plays the role of edge protection and can also improve the aesthetics.
Each fitting is precisely designed to match a specific size of pipe (such as 1", 1-1/4", 1-1/2", etc.), ensuring a stable and shake-free connection and ensuring the safety of the overall structure.
1. No welding required, reducing construction complexity
The entire system adopts a plug-in design, which can be installed with only an Allen wrench. Non-professional construction personnel can also quickly get started, greatly saving labor and time costs.
2. Flexible structure, adjustable on site
According to the installation site environment and needs, the angle and length can be flexibly adjusted, especially suitable for irregular areas such as ramps, platform corners, etc.
3. Higher maintainability
When a section of the handrail is damaged or needs to be rearranged, part of the system can be easily disassembled for replacement without cutting or redoing the entire section, and the maintenance cost is low.
4. Applicable to a variety of environments
Through anti-corrosion treatments such as hot-dip galvanizing or powder coating, accessories and pipes can be used for a long time in harsh environments such as outdoor, humid, and even chemical plants.
1. Confirm the outer diameter of the pipe
Make sure the inner diameter of the selected accessories is consistent with the size of the pipe to avoid looseness or inability to install.
2. Pay attention to the surface treatment process
Choose products with anti-corrosion coating to extend the service life.
3. Choose a standardized product system
Try to choose a brand with a complete series of accessories, so that there will be no matching problems in later expansion or maintenance.
4. Consider the load-bearing strength
Different usage scenarios (such as aerial work platforms vs. commercial walkways) have different requirements for system strength. If necessary, thickened pipes or heavy-duty accessories can be selected.
5. Verify the qualifications of the supplier
Suppliers with ISO9001 certification and quality inspection reports are more trustworthy and can provide long-term and stable quality assurance and after-sales service.
Whether it is to meet safety regulations, improve the image of the site, or optimize construction and maintenance efficiency, tubular handrail system with high-quality pipe railing fittings is your indispensable partner.
When choosing suppliers and products, please give priority to professional manufacturers that provide a full range of accessories, support customization, have a mature delivery system and technical support - such a combination can ensure construction efficiency while also adding a lot of points to your project.
As a professional supplier of structural pipe guardrail fittings, Hulk Metal has provided reliable solutions for projects in many industries around the world. We have:
Complete mold system, covering most of the standard accessories on the market;
Malleable cast iron or ductile iron material, strong and durable;
Support OEM customization, just provide drawings or samples for proofing and production;
Passed ISO9001 quality certification, and the shipment is accompanied by a test report;
Flexible supply chain and international logistics cooperation network, fast and stable delivery.
Whether it is a new project construction or an old system renovation, Hulk Metal can tailor a safe, economical and easy-to-install pipe guardrail solution for you.
Contact us now to get a product catalog or a customized quotation, so that your project will be simpler and more efficient from the "connection"!
