Description:

As a commonly used type in Pipe Handrail Fittings, 131 Base Flange is mainly used for the link between the structure and the ground or platform. There are four holes in the flange to fix it more firmly. 131 Base Flange has a variety of materials, among which malleable steel and ductile iron are the most used. Pipe Handrail Fittings can also undergo surface treatment such as powder coating, hot-dip galvanizing, and electro-galvanizing, among which hot-dip galvanizing is the most used because it not only has a good appearance but also can be used in harsher environments. 131 Base Flange is most commonly used in handrail and guardrail systems and can also be used to fix tables, brackets, etc.

Parameters of Pipe Handrail Fittings Base Flange 131

NAMEBase Flange 131
MATERIALMalleable Steel / Ductile Iron / Aluminum Alloy /   Stainless Steel
SURFACE TREATMENTGalvanized/Powder-coat/Customizable
PROCESSSand Casting /Investment Casting / Die Casting /   Tapping /Surface Treatment
CERTIFICATIONCE / TUV / SGS
COLORMetallic / Silver / Black / Customizable
TUBE SIZE(mm)Inches
A26.93/4"
B33.71"
C42.41 1/4"
D48.31 1/2"
E60.32"
T21.31/2"
OTHERCustomizable
OTHER SERVICE
BRANDINGCustomizable
PACKAGINGCarton & Wooden Pallet / Customizable
DELIVERYFOB / CFR / Customizable
AFTER SERVICEQuality Assurance Service


Features of Pipe Handrail Fittings Base Flange 131

  • Easier Installation:
    Easier Installation:

    When we use the 131 Base Flange, we only need to place it on the ground or platform that needs to be installed and use a pen to trace the four holes(The position of the hole on the floor needs to coincide with that of 131 Base Flange.), and then use a punching gun to punch out the holes. Use specific screws to fix it on the ground or platform (if the floor is stone or cement, you can use expansion screws, if it is a wooden or iron platform, you can use ordinary screws). Finally, insert the pipe into the socket of the Base Flange to complete the installation.


  • Suit Harsher Environments and More Beautiful:
    Suit Harsher Environments and More Beautiful:

    The 131 Base Flange that is electro-galvanized after hot-dip galvanizing will have a brighter surface and stronger rust resistance, but its production cost will be much higher. However, only hot-dip galvanized Pipe Handrail Fittings have a dull exterior but have good rust resistance, and the price will be much more reasonable. The powder-coated Pipe Handrail Fittings have a beautiful appearance but are more prone to fading under high temperatures or sunlight.


  • Advanced Casting Technology and Higher Standard Quality:
    Advanced Casting Technology and Higher Standard Quality:

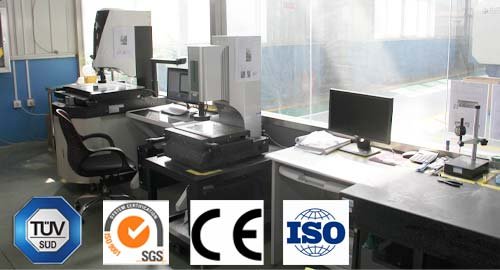

    HULK Metal has fully automatic molding machines and fully automatic pouring machines, which can complete the production of malleable steel and ductile iron Pipe Handrail Fittings faster. Each 131 Base Flange will undergo strict quality testing to meet customer requirements. HULK Metal has passed the ISO 9001 certification and has produced Pipe Handrail Fittings for customers that can pass CE, TUV, SGS, and others.


  • More Materials are Available:
    More Materials are Available:

    Among the many materials of 131 Base Flange, the two most used are malleable steel and ductile iron. Because these two use the sand casting process, the processing cost is lower, followed by aluminum alloy and stainless steel. Pipe Handrail Fittings made of aluminum alloy have emerged in recent years, and they have better performance and lighter weight. We also provide OEM service. You can contact us at any time if you need.


  • Can Enjoy Better Service:
    Can Enjoy Better Service:

    HULK Metal has a professional service team that can help customers solve various problems in purchasing Pipe Handrail Fittings. In terms of production services, we can provide customers with services such as packaging printing, logo engraving on products, etc. It can also help customers find more economical shipping companies.
