Description:

134 Ground Socket is a recessed Pipe Rail Fitting for concrete floors. It is used by burying it in the paved concrete floor being laid. The part embedded in the concrete has two ears that prevent it from being pulled out. 134 Ground Socket generally uses malleable steel and ductile iron as raw materials, and the surface treatment is hot-dip galvanized. Because hot-dip galvanized Pipe Rail Fittings have a thicker coating and can be used for a more extended period in harsh environments. 134 Ground Socket is suitable for guardrails and handrail systems of concrete ladders in scenes such as roads or roofs.

Parameters of Pipe Rail Fittings Ground Socket 134

NAMEPipe Rail Fittings Ground Socket 134
MATERIALMalleable Steel / Ductile Iron / Aluminum Alloy /   Stainless Steel
SURFACE TREATMENTGalvanized/Powder-coat/Customizable
PROCESSSand Casting /Investment Casting / Die Casting /   Tapping /Surface Treatment
CERTIFICATIONCE / TUV / SGS
COLORMetallic / Silver / Black / Customizable
TUBE SIZE(mm)Inches
B33.71"
C42.41 1/4"
D48.31 1/2"
OTHERCustomizable
OTHER SERVICE
BRANDINGCustomizable
PACKAGINGCarton & Wooden Pallet / Customizable
DELIVERYFOB / CFR / Customizable
AFTER SERVICEQuality Assurance Service


Features of Pipe Rail Fittings Ground Socket 134

  • Faster and Easier to Install:
    Faster and Easier to Install:

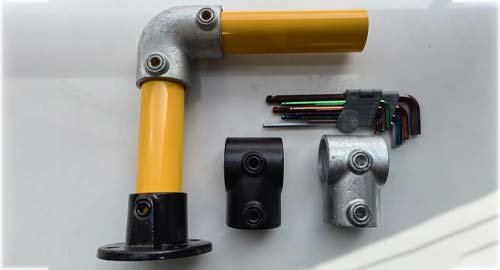

    The 134 Ground Socket has a socket into which the tube can be inserted. There is an oblique fastening screw on the socket, so we can easily use the Allen key to fix the pipe. The fixed structure is also sturdy. 134 Ground Socket is a type of Pipe Rail Fittings that are not in great demand.


  • More Anti-rust and More Wear-resistant:
    More Anti-rust and More Wear-resistant:

    134 Ground Socket mainly uses hot-dip galvanizing as surface treatment. Hot-dip galvanized Pipe Rail Fittings have a thicker coating, and after oxidation in the air, an oxide film will be formed to prevent the interior from continuing to be in contact with the air. Moreover, this coating is wear-resistant and can still be rust-resistant after repeated use.


  • Higher Quality is Safer:
    Higher Quality is Safer:

    134 Ground Socket is produced by casting. The performance is even better. We will develop standard-compliant production solutions according to the customer's usage scenarios and performance requirements. HULK Metal has passed the ISO9001 certification and has produced CE, TUV, SGS, and other certified Pipe Rail Fittings for hundreds of customers.


  • More Materials are Available:
    More Materials are Available:

    The raw materials of 134 Ground Socket mainly include malleable steel and ductile iron. The prices of these two types of Pipe Rail Fittings are similar, but the performance of ductile iron is better than that of malleable steel. Besides these two materials, we can also provide OEM service of Stainless Steel and Aluminum Pipe Rail Fittings. If you need, you can contact us at any time.


  • More Comprehensive Services:
    More Comprehensive Services:

    HULK Metal specializes in providing Pipe Rail Fittings production services. We have a complete set of molds, which can reduce the cycle of making molds. We have also set up a comprehensive service team can find a more suitable freight company for you, provide quality assurance services, etc. You can get a better service experience at HULK Metal.
